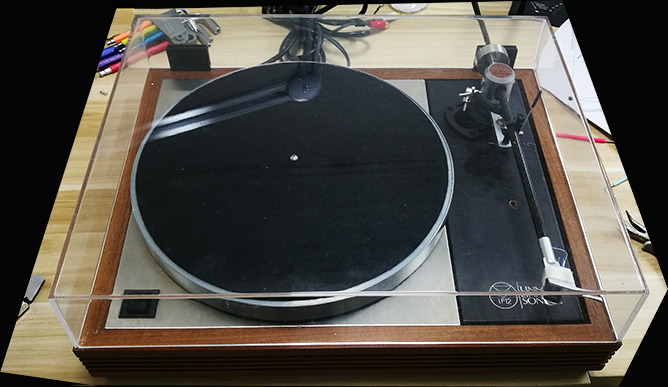

JS-TA224 9' tonearm installed on Linn-12 turntable, archieved excellent performance.

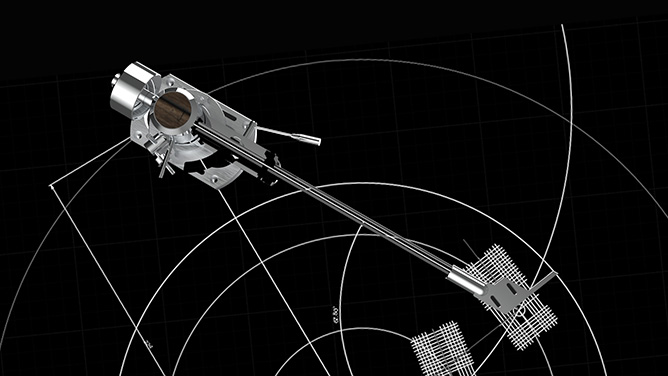

Scientific tracking algorithm optimization
TA224 9' tonearm arm has excellent tracking performance, tracking distortion < = 0.7%

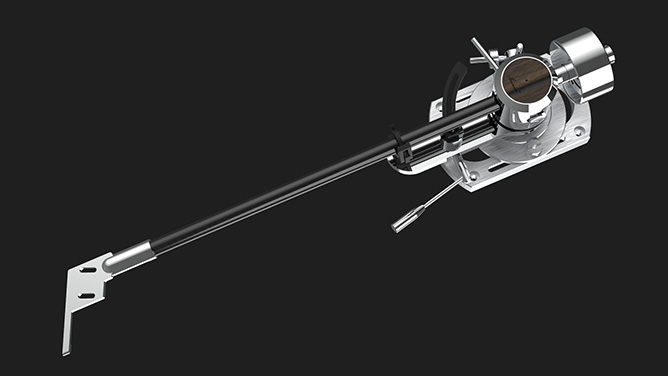

Scientific material selection and precision CNC
TA224 adopts carbon fiber arm tube and shock absorber coupling material. Reasonable material selection improves the resonance absorption performance of TA224 tonearm.
Accurate, meticulous and precise processing technology helps TA224 achieve the excellent design target.
- EFFECTIVE LENGTH = 240mm
- OVERHANG = 16mm
- PIVOT to SPINDLE DISCTANCE = 224mm
- OFFSET ANGLE = 22.2°
- NULL POINTS = 62.41mm， 118.95mm
- TRACKING DISTORTION <= 0.7%
