Type MC |

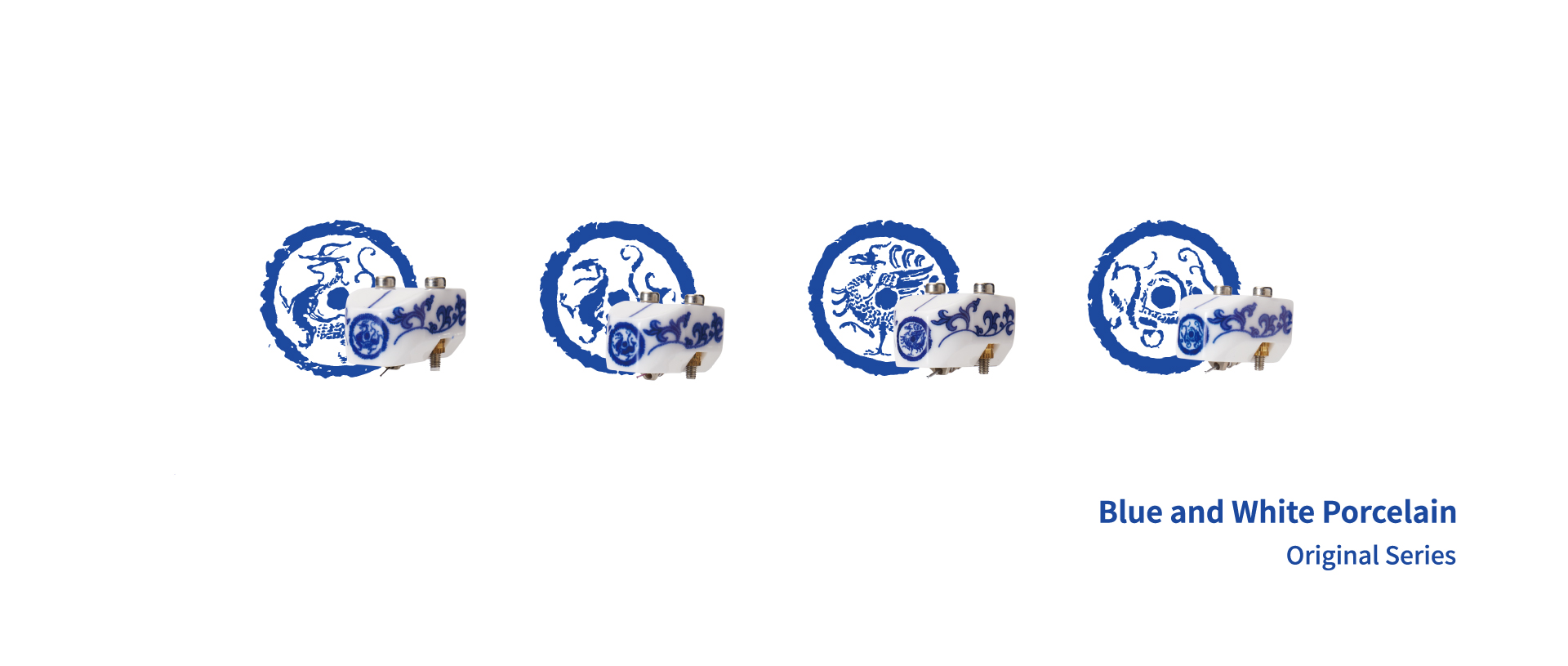

Shell Blue and white porcelain |
Stylus 0.3x0.7mil Super Line Diamond |
Cantilever Aluminum Tube |
Height 18.5mm |
Weight 14.5g |
Internal Impedance(DC resistance) 19 Ohm |
Output Voltage 0.38mv, 1KHz@ 33 1/2 |
Freq. response 10 -40KHz +/-1dB |
Channel separation > 30dB@1KHz |
Channel balance < 0.5dB |
Optimal Tracking Force 1.5g ~ 2.5g |
Optimal Tracking Angle 24 degree |
Break-in Period
20 hours |
Compliance 12 um/mN |
|
