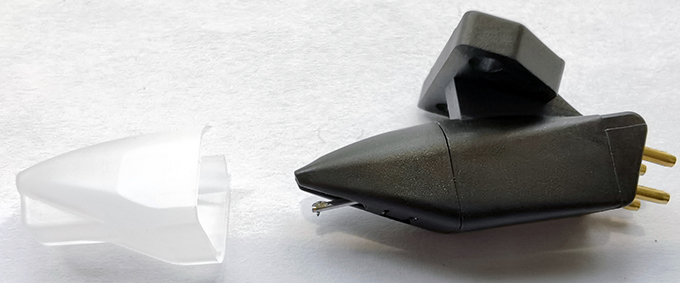

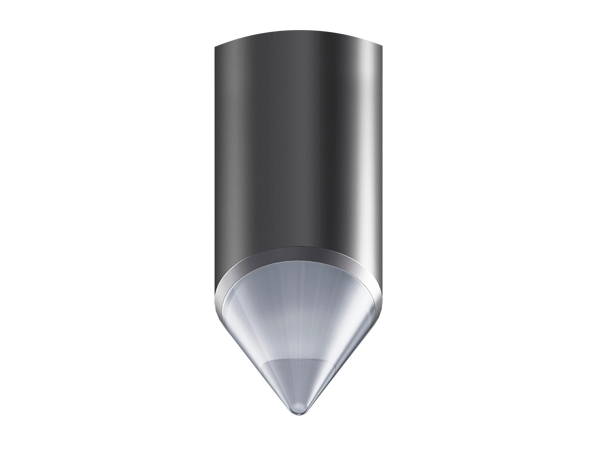

Conical bonded diamond stylus

. Stylus replaceable

. Dual coil structure

. High performance/cost rate

. Balanced ,vivid sound

Specification

  • Type

    MM

  • Coil

    0.03mm TPC

  • Stylus

    Conical Bonded-diamond

  • Cantilever

    Hard coating aluminum

  • Height

    18mm

  • Weight

    4.8g

  • DC resistance

    245Ω

  • OUTPUT(1KHZ5cm/s

    3.3mV

  • Freq. Response

    20 - 20KHz

  • Channel Separation

    > 21dB@1KHz

  • Channel Balance

    < 1.5dB
  • Tracking Force

    2.0-3.0g

  • Recommend Tracking Force

    2.5g

  • Load Impedance
    47KΩ

  • Load Capacity

    100 - 200 pF

  • Compliance

    9.0um
